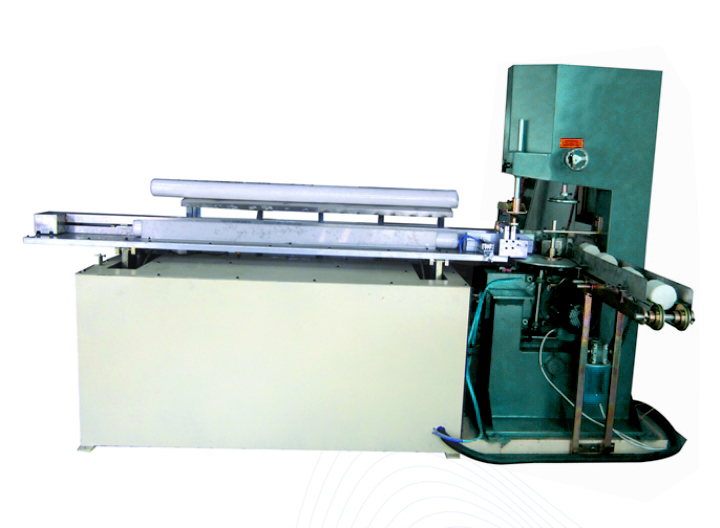

Automatic Sawing belt machine

Introduction



Features:

1,This machine is suitable for cutting paper with paper core both no paper core. The roll paper length is 1.2~2.0 m, Automatic paper feeding , trimming, discharge waste, automatic packing machine can be connected;

2,As long as setting the number that you want in the interface, it can be work by the requirement, the cutting speed is 60-70 piece/ minute, paper cutting effect is not fluff  without bias or crooked, connect to automatic packing machine, more savings artificial, reduce production cost, improve production efficiency;

3,Machine has advanced configuration, stable performance, material gb, durable, control part mainly use imported high-quality components, the rest of the parts are national standard quality accessories;

Main Specifications:


Specification

YJ-JDJ

Power source

 380V 50Hz

Rated power

4KW

 Rated Voltage

380V

Rated Current

8A

Band saw speed

1500r/min

Paper cutting speed

50~60 Volume /minute

Rated cutting range

50~130mm

Machine noise

65dBA

Pneumatic

0.6MPa



Dimension

L3000mm

W3400mm

H2200mm

Gross Weight

1500Kg

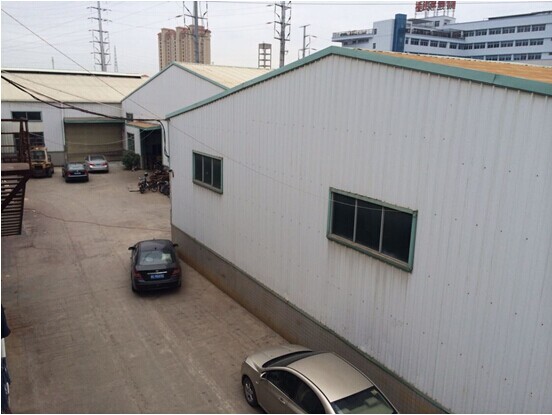

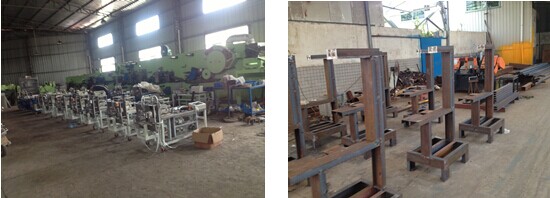

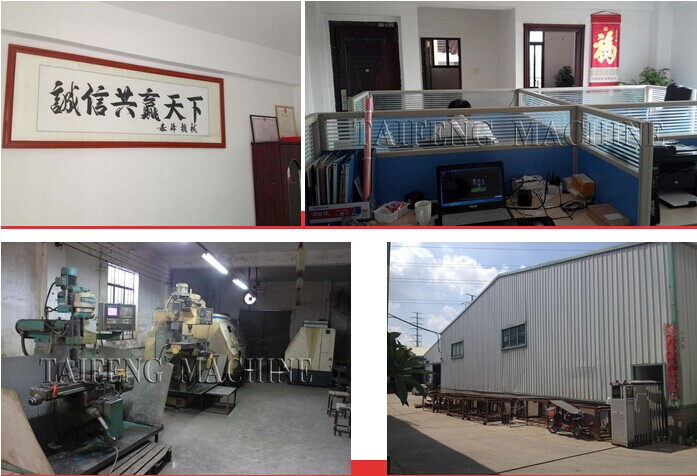

Factory
