Automatic rewinding and perforating paper machine

Introduction


Feature  and  function

1.Using PLC programmable control system

2,The man-machine dialoge control, display the production parametrs on screem

3.Jumbo roll paper is pneumatically loaded on machine, unwinding roll tensioncontrol device.

4.The rewinding process of the product is tight first and loose afterward, with itstension adjustable.

5.Punch length is adjustable.

6.Paper core replacement, glue spraying and paper cutting undergo automaticallyaccording to given sequence.

7.Embossing pattern is to be selected by clients.

8.The bearings,,electrical components and  synchronous belts  are using famous brand

9.According to the requirements of customers can do double embossing roll,and can assorted with rubber composite device to product the kitchen paper as also 1-3color printing equipment.

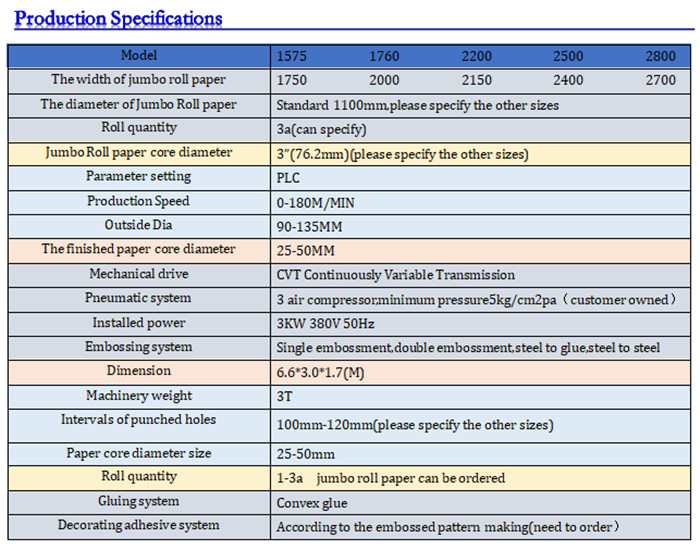

The technical parameters of fully automatic toilet paper machine


Model

1575  1760   2200   2500  2800

The width of jumbo roll paper

1750  2000  2150   2400    2700

The diameter of Jumbo Roll paper

Standard 1100mm,please specify the other sizes



Roll quantity

3a(can specify)

Jumbo Roll paper core diameter

3”(76.2mm)(please specify the other sizes)

Parameter setting

PLC

 Production Speed

0-180M/MIN

Outside Dia

90-135mm

The finished paper core diameter

25-50mm

Mechanical drive

CVT Continuously Variable Transmission

Pneumatic system

3 air compressor,minimum pressure5kg/cm2pacustomer owned

Installed power

3KW 380V,50HZ

Embossing system

Single embossment,double embossment,steel to glue,steel to steel

Dimension



6.6×3.0×1.7 (L x W x H):(m)

Machinery weight

3T

Intervals of punched holes

100mm-120mm(please specify the other sizes

Paper core diameter size

20-50mm

Roll quantity

1-3a  jumbo roll paper can be ordered

Gluing system

Convex glue

Decorating adhesive system

According to the embossed pattern making(need to order
