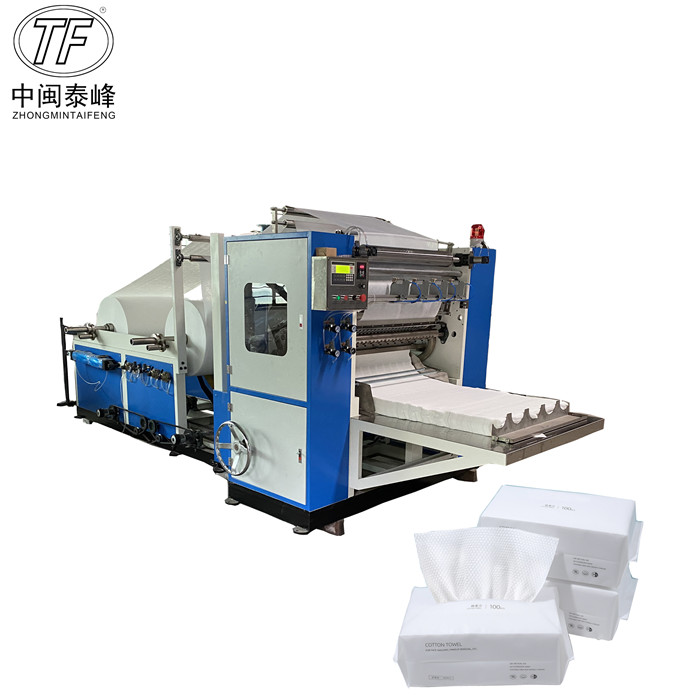

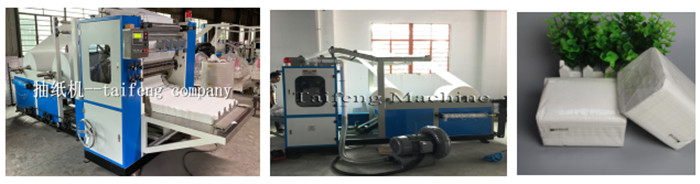

Pumping tissue machine

Introduction


 Functions and features

1.Automatic counting points, the whole line of the output.

2.Spiral blade shear, vacuum adsorption folds.

3.Put volume stepless speed regulation, can adapt to high and low tension of base paper.

4.Electronically controlled pneumatic, easy to operate.

5.Product width can be adjusted to facilitate customer marketing.

6.Rolling paper pattern matching device, the pattern is clear that flexible market demand. (Selected pattern set by the guests).

7.Form a complete set of two-color flexo printing device, colorful patterns.


The working principle of tissue cutting

Cutting system:Consist of sawing belt, belt wheel, working panels.Work panels have product size adjustment device, adjustable make the product to achieve.

Folding forming: Along with the main motor running, fold the crank arm manipulator rod body, cooperate to produce, the deflection Angle, can adjust the position of the crank arm and change the length of the connecting rod to adjust (after folding forming is solid, i.e., don't need to adjust)

Dislocation counting and dividing:Adjust budget Numbers count control instrument, when the number reaches a constant value, relay drive cylinder to produce finished products export bedplate of displacement.

The characteristics of the tissue machine:

    Have put roll tension control,,can adapt to high and low tension base paper production. In the paper can roll pattern, pattern is clear. Facial tissue machine adopts stepless speed regulation, conveyor, embossing, flowers; Vacuum folding, cutting.



Model

 YJ-2L                  YJ-3L             YJ-4L              YJ-5L               YJ-6L

Width of the base paper

420mm                630mm             840mm           1050mm           1260mm

Base paper gram

 12-18g/m x 2-3layers

Base paper diameter

 Standard φ1100mm

The paper core diameter

3’(76.2mm)

The finished product size

140,150,160-210x140-210(mm)

Folding size

(70-105)x(140-210)(mm)

Production speed

1600                   2400                    3200                    4000                  4800

The machine drive

CVT system

Program control

PLC, touch screen

Pressure side of the system

Steel on steel, independent adjustment

Counting System

Dislocation pile of counting

Pneumatic system

3 air compressor, at least 5 kg/cm2Pa pressure

Mechanical speed

60-100m/min

Fan system

 5.5kw                   7.5kw                  11kw                 13.5kw              16kw

Power

 2.2kw                   3kw                      4kw                    5.5kw                 7.5kw

Installation dimensions

4.1x1.3x2.1         4.1x1.5x2.1          4.1x1.7x2.1          4.1x2x2.1            4.1x2.3x2.1

Machine weight

 1.8T                        2.2T                     2.6T                   3.0 T                  3.5T

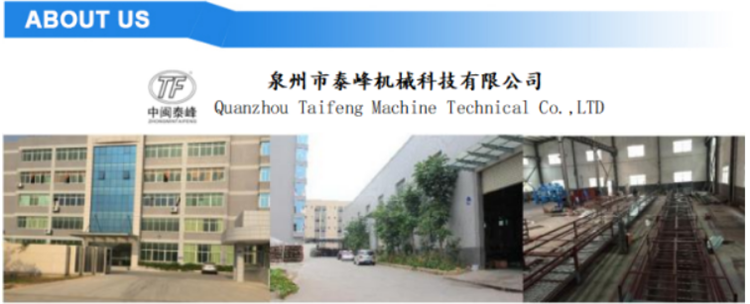

Factory

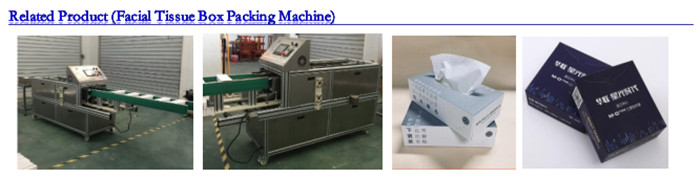

More Products
